✅Product Overview

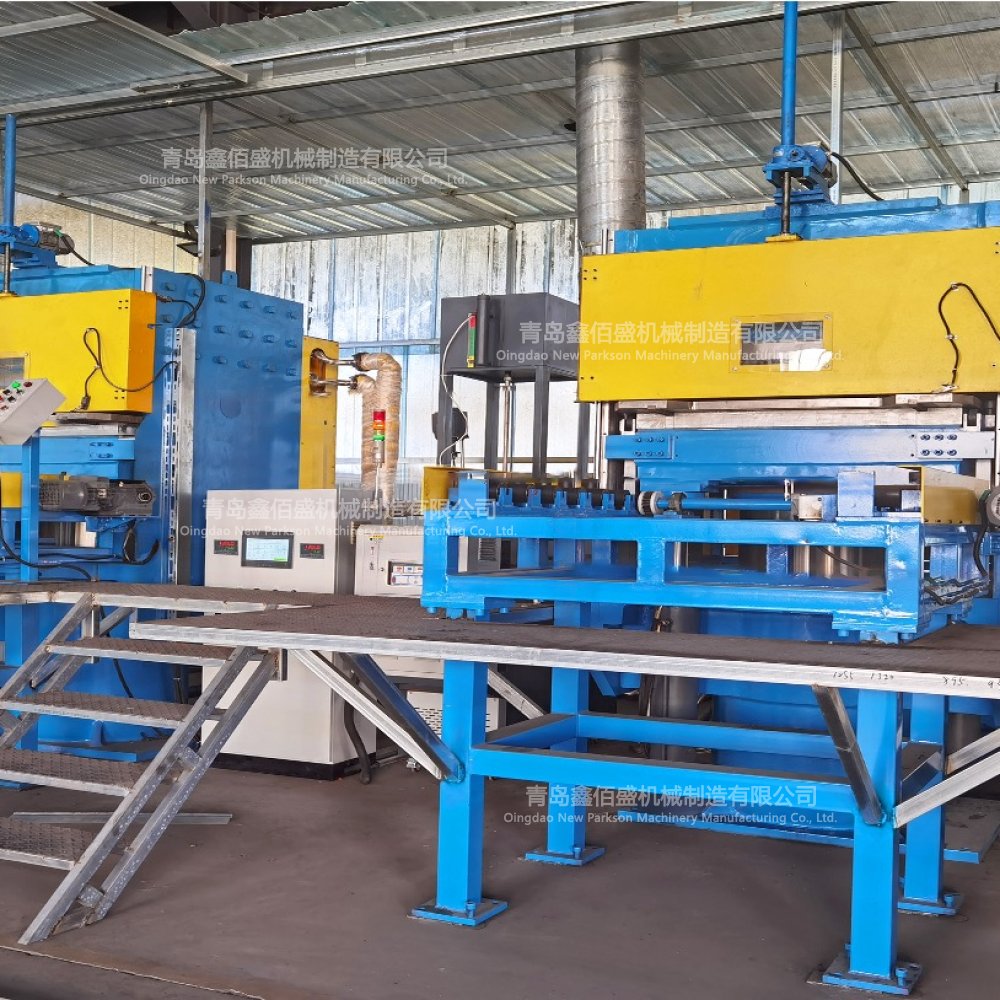

The Bridge Bearing Vulcanizing Press is a specialized hydraulic press designed for the production of rubber bridge bearings and seismic isolation bearings used in buildings, bridges, and other civil engineering structures. This equipment is essential for manufacturing high-quality rubber-to-metal bonded components that absorb vibration, accommodate structural movement, and provide seismic protection.
The press is engineered to vulcanize rubber layers with embedded steel plates under precise temperature and pressure control, ensuring uniform bonding and consistent product quality. Ideal for producing laminated rubber bearings, pot bearings, and other structural rubber components.
✅Key Features
Precise Temperature Control
Advanced PID temperature control system ensures uniform heat distribution across the platen surface. Temperature tolerance of ±3°C, with heating options including electric, steam, or thermal oil – selectable based on your process requirements.
PLC Intelligent Control
User-friendly HMI with manual and automatic operation modes. Programmable pressure, temperature, and curing time parameters with recipe storage for repeatable production.
Customizable Options
Non-standard designs available – platen size, pressure, daylight, and stroke can be customized to meet specific production requirements.
Why Choose New Parkson?
18+ years of industry experience in rubber machinery manufacturing
SGS,CE,ISO certificates
Core technical team with over 10 years of expertise in vulcanizing press design
Full customization capability – from platen size to control system
Comprehensive after-sales support – installation
Welcome to call or write to inquire and negotiate.
Qingdao New Parkson Machinery Manufacturing Co., Ltd
——Your reliable partner in the rubber machinery industry, covering a full range of 25-10000 tons vulcanizing machines
| Model | Total Pressure (MN) | Platen Size (mm) | Working Layers | Piston Stroke (mm) |
|---|---|---|---|---|
| XLB-1200×1200 | 3.15 | 1200×1200 | 1 | 300 |
| XLB-1500×1500 | 8.00 | 1500×1500 | 1 | 800 |
| XLB-1600×1600 | 6.50 | 1600×1600 | 1 | 500 |
| XLB-2000×2000 | 20.00 | 2000×2000 | 1 | 400 |
| XLB-2500×2500 | 25.00 | 2500×2500 | 1 | 800 |
Custom sizes and specifications available upon request.
Bridge rubber bearings – laminated elastomeric bearings, pot bearings
Seismic isolation bearings – building and bridge isolation systems
Rubber-to-metal bonded components – structural bearings, expansion joints
Large rubber products – rubber fenders, dock bumpers, rubber pads
