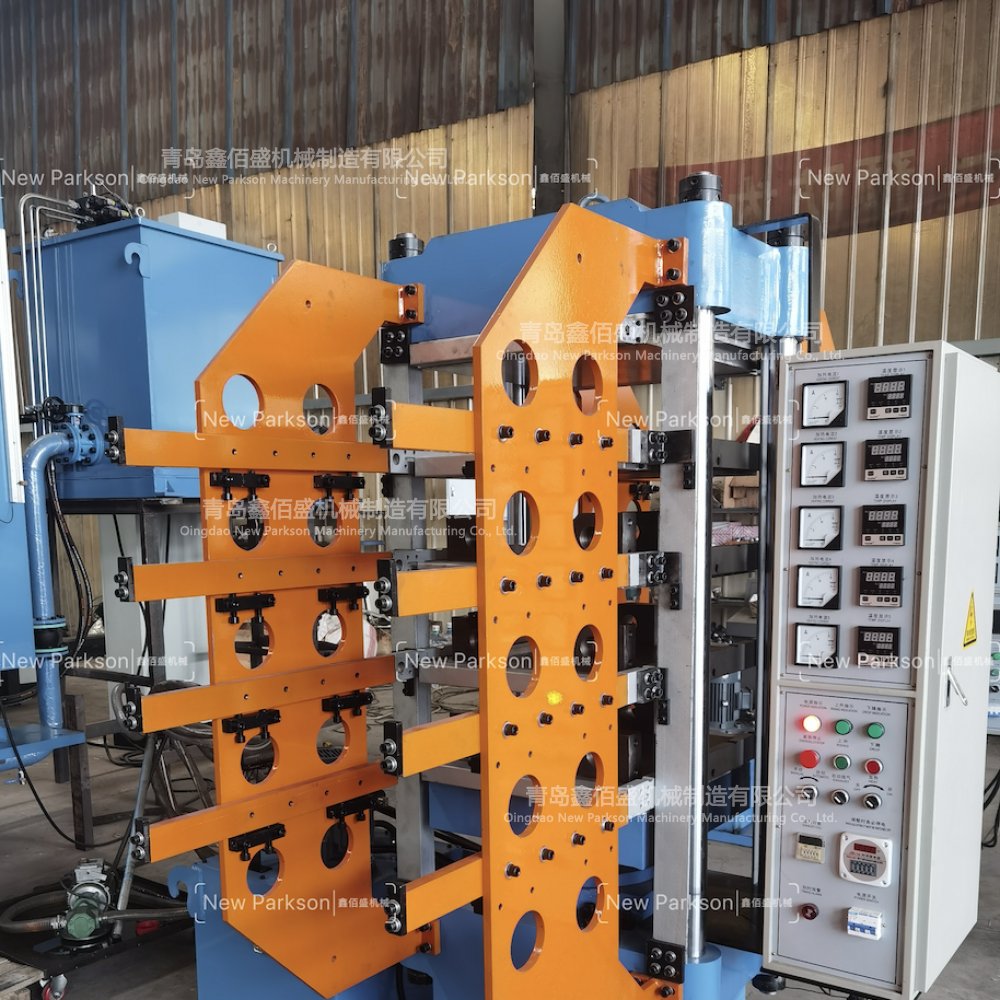

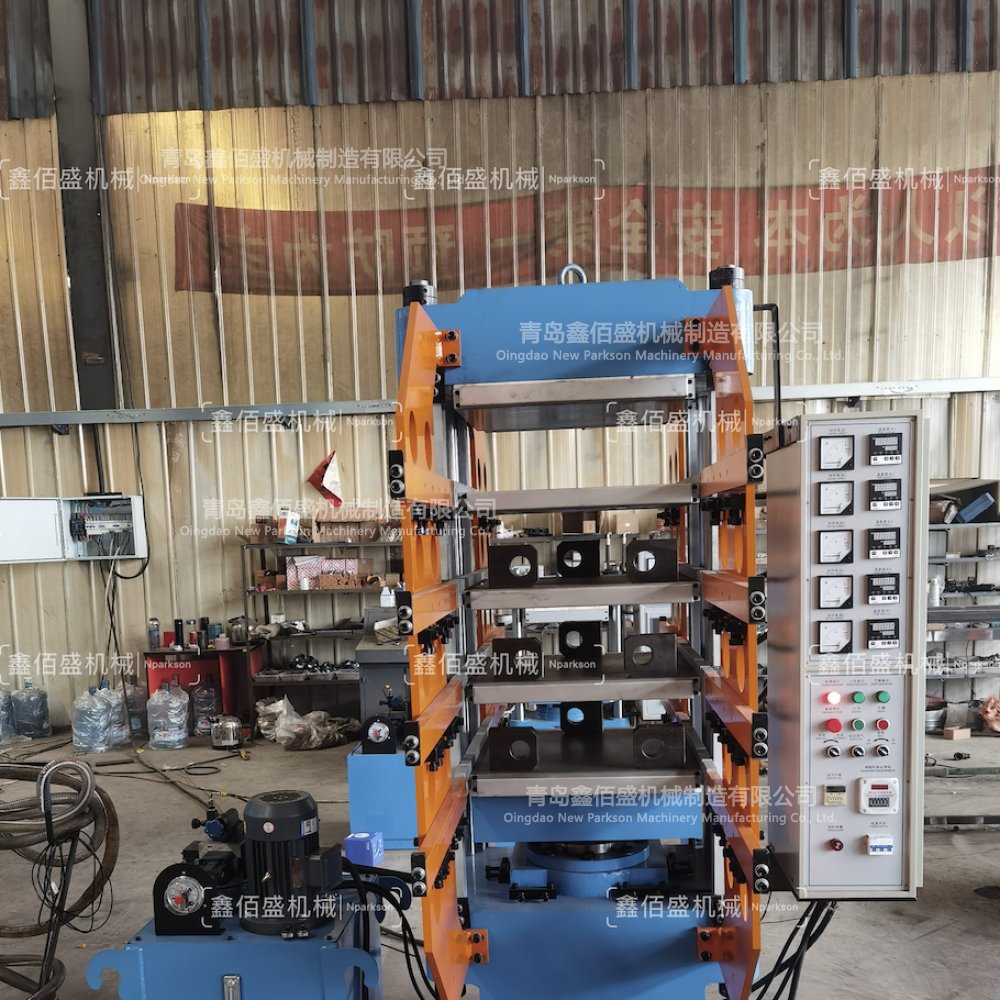

Rubber floor tile vulcanizing machine is a specialized hydraulic forming equipment used for producing rubber floor tiles, rubber mats, gym floor mats, and other products. This device uses high-temperature and high-pressure vulcanization technology to vulcanize waste tire particles, EPDM colored particles, PU particles, or natural rubber materials into rubber floor tiles of different specifications and colors. This machine is widely used in the fields of environmentally friendly building materials and sports field paving, and belongs to an environmentally friendly equipment with high input-output ratio and good market prospects
Main uses and application areas
Recycling of waste tires: Processing tire particles into rubber floor tiles to promote environmental protection

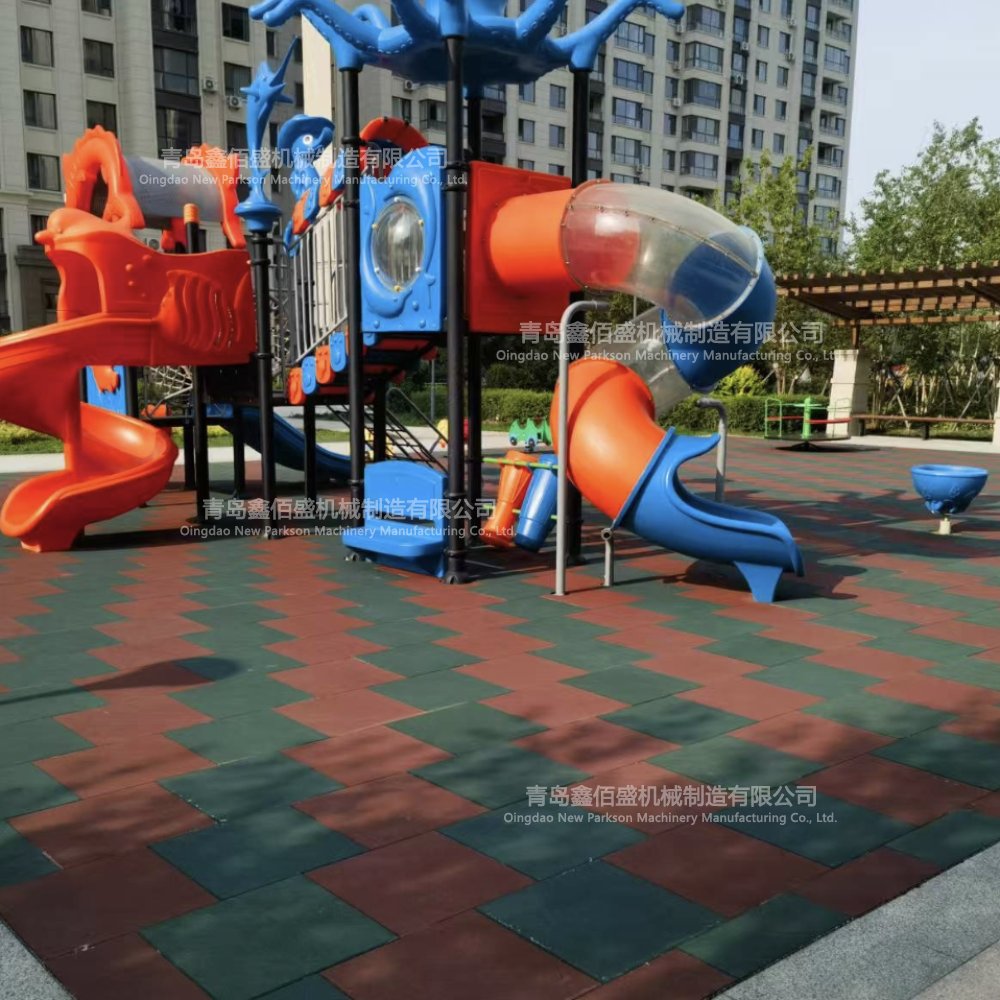

Gyms and sports venues: producing high-intensity sports mats, anti slip and shock-absorbing
Livestock breeding industry: producing antibacterial and anti slip floor tiles that are easy to clean

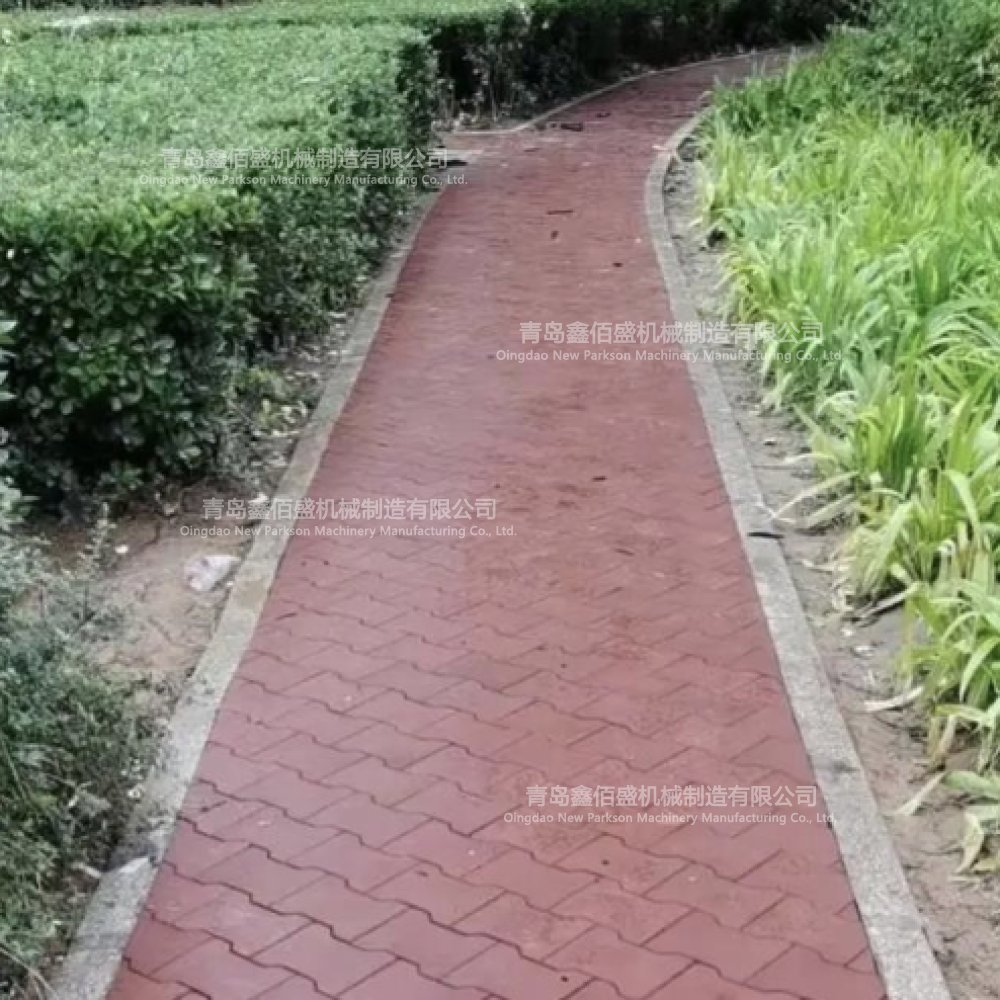

Municipal public facilities: production of permeable bricks for park trails and anti fatigue floor mats
Industrial plant: producing oil resistant and corrosion-resistant industrial floor mats
Product highlights and technological advantages
PLC fully automatic control: using Siemens/Mitsubishi PLC control system, one click operation, can store multiple formulas
Automatic exhaust and pressure compensation: can effectively eliminate gas in the rubber material and prevent the production of bubbles in the product; Automatic pressure compensation for pressure drop
Manual/electric push-pull mold system: supports manual or automatic push-pull, significantly reducing labor intensity
Large workbench: standard countertops of 550 × 550mm and 1200 × 1200mm, supporting large-scale production
Flexible mold opening+stable guidance: four column/frame structure ensures the accuracy of mold centering
High quality temperature control: The temperature deviation of the hot plate can be controlled within ± 1 ℃ to ensure uniform vulcanization
Non standard customization: Tonnage, heating method, and hot plate size can be customized according to demand
Optional configuration and customized services
Heating methods: electric heating (standard), thermal oil heating, steam heating
Electrical configuration: Brands such as Chint, Siemens, Mitsubishi, etc
Push pull mode: manual push pull, automatic push pull/hydraulic push out
Temperature control accuracy: ordinary ± 2 ℃/high-precision ± 1 ℃
Safety devices: safety light curtain, protective cover, emergency stop switch
Mold support: can be customized according to the drawings or samples provided by the user
Production process (complete process from raw materials to finished products)
Step 1- Mixing: Mix the rubber particles and polyurethane adhesive in proportion in a mixing drum
Step 2- Weighing: Weigh the required weight according to the thickness of the floor tiles
Step 3- Laying: Spread the mixture evenly in the mold, first lay the colored surface layer, and then lay the black bottom layer
Step 4- Sulfurization molding: Push the mold into the vulcanizing machine, set the vulcanization time according to the thickness, and automatically exhaust
Step 5- Demoulding Cooling: The mold automatically exits, and the finished product is taken out and placed on a drying rack for natural cooling
New Parkson Rubber Machinery specializes in producing rubber floor tile vulcanizing machines, which support electric heating/oil heating, PLC control, automatic exhaust, and automatic pressure compensation. They are used for producing waste tire floor tiles, gym sports mats, animal husbandry floors, etc. Support non-standard customization, welcome to inquire.
